Product Description
277730X – TF-500 CAT COMPRESSOR
PART NUMBER(S):
Fleet Products: 277730X | OE: TF-500, 065491, 109285, 109336, 5003648, 5005466, 5005415
DESCRIPTION:

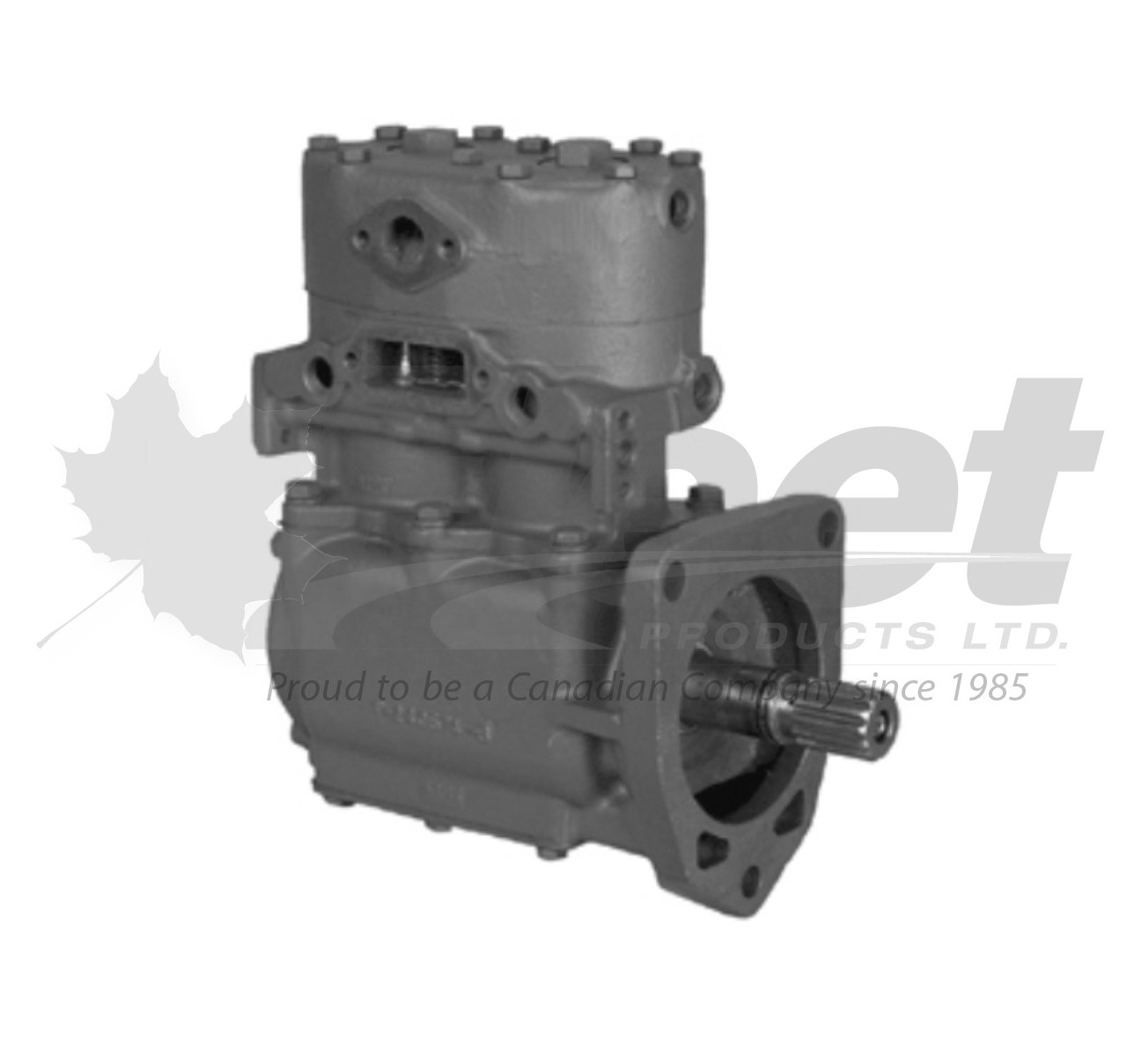

Model: TF-500 CAT Pulley Drive Compressor
Vehicles: Heavy trucks, semi trucks, 18 wheelers, commercial trucks
• Air Inlet: Right
• Air Outlet: Right (with optional top or left discharge)
• Cooling: Water or Air cooled
• Shaft: 22 Tooth Spline
• Mount: Flange Mount
• Drive: Engine Drive, Pulley Driven
• Discharge Type: Flange
• Weight: Approx. 46 lbs
• Condition: Remanufactured, core return required
• Built to OEM standards—thoroughly cleaned, inspected, and tested for durability and performance
CROSS-REFERENCE(S):
065491, 109285, 109336, 5003648, 5005466, 5005415
A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm that port sizes and specifications match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Includes installation gaskets

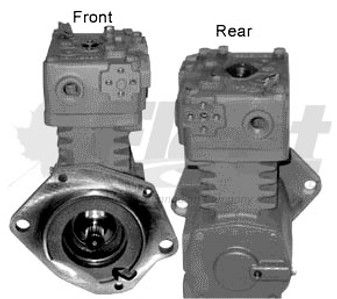

✔ Port orientation viewed from rear
✔ Ensure spline shaft matches with 22 tooth configuration
✔ Core return required for remanufactured units
✔ Torque specifications: Follow standard TF-500 series guidelines for pulley nut and mounting bolt torque
PICTURE USED FOR WEBSITE PURPOSE ONLY
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
