Product Description

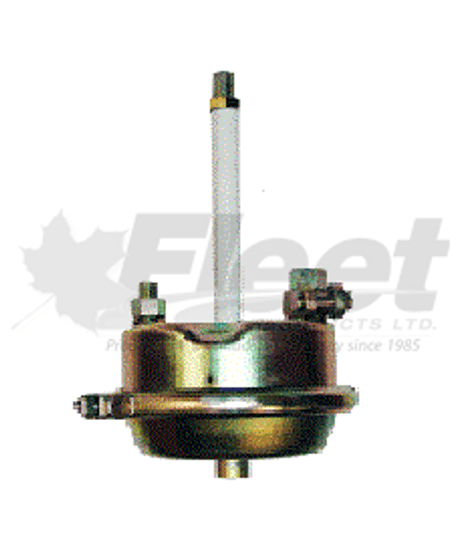

TYPE 24 SERVICE CHAMBER
PART NUMBER(S):
Fleet Products: 2400SC, 2400001, 52400001, MA36240
OE: SC24, KN36240, E-24S
Automann: 179.SC24
DESCRIPTION:
Model: Type 24 Service Brake Chamber
Vehicles: Compatible with commercial vehicles and trailers requiring Type 24 service brake chambers
• Chamber Size: Type 24
• Stroke: 2.25" (57 mm)
• Push Rod Length (J): 8.25"
• Push Rod Diameter: 5/8"-18 UNF (threaded)
• Port Size: 2 x 3/8"-18 NPTF
• Stud Size: 2 x 5/8"-18 UNC-2A
• Stud Height: 1.5"
• Stud Spacing (E): 4.75" (120.7 mm) center-to-center
• Housing Height (D): 4" (103 mm)
• Distance A (mounting bracket to spring housing): 3.8" (97 mm)
• Port Position (T): 90°
• Clampband Position (S1): 45°
• Weight: ~8.6 lbs (3.9 kg)
• Housing Material: Powder-coated steel with resistance welded air ports
• Diaphragm: High-quality rubber compound, flexible to -40°F
• Features:
• Orange Alert stroke indicator
• Self-piloting dust shield
• Step-bottom or flat-bottom configuration with 10–12 gauge steel (per source)
Applications:
Direct fit for heavy-duty drive or trailer axles in commercial trucks requiring a Type 24 service chamber. Used across various OEM configurations including Volvo VNL 670 Gen 2, Kenworth T660, Peterbilt 379, and International/Navistar platforms. Engineered for performance in extreme environments, meeting FMVSS 121 compliance for air brake actuation systems.
CROSS-REFERENCE(S):
2400SC, 2400001, 52400001, MA36240, SC24, KN36240, E-24S, R870024, 179.SC24, 1427001, 3427051, MGM1427001, MGM3427051, R870024BK, R870024BULK, 5007130, BW5007130, BW800829, E-24S-L, E-24S-LS, E-BC24S, E24S, E24SL, E24SLS, TSE2424T, TSTSE2424T, 2424T, 2424TOAC, 2424TSTD, 2424TSTDC, 8215710000, 82-15710-000, OB2424SB, OBI2424SB, S18150, MGM1428001, MIDSC24XL, HDX SC24XL, 1428001, 55541428001, 030019, 05-124, 050A-0064, 050A0064, 1-105, 1036240, 1119493, 12360, 12362, 14-517, 1427001X, 1427230, 1427231, 150-240, 15440, 800825, 802986, 225926, 274423, 288808, 288809, 5007120, BW802986, 24SCN2, RC-SC24, 55541427001, 802986BXW, 8235R870024, 1424001, C24L, 0224-100, 02240-100, FLTS24S18, SBT24, S-9815, S9815, XX-24SC, 24SC, 5396-SC24L, 62004, 745800825, A2400, D:SC24, PCBRC2400, PLBSC-24, TYPE24
A cross-reference listing means this part may be a compatible replacement for these part numbers based on OEM or distributor data.
IMPORTANT INSTALLATION NOTES:
✔ Confirm push rod length (10.23") and thread (9/16"-20 UNF) match clevis
✔ Use proper mounting with 4.75" stud spacing and 7/16"-14 UNC threads
✔ Ensure 3/8"-18 NPTF air ports are oriented at 90° downward to prevent moisture accumulation
✔ Clampband position is 45°; verify compatibility with axle mounting bracket
✔ Apply thread sealant to air ports to ensure leak-free connection
✔ Replace diaphragm during installation; never reuse used diaphragms
✔ Post-installation stroke check: ensure free stroke of 1/4"–3/8" per FMVSS 121
✔ Test chamber at 100 psi; pressure drop must be ≤10 kPa within 5 minutes
✔ Torque mounting bolts to 35–40 ft-lbs
✔ Torque air line fittings to 18–20 ft-lbs
SOLD AS NEW
Brand new and ready to install, with OEM Grade Reliability
