Product Description

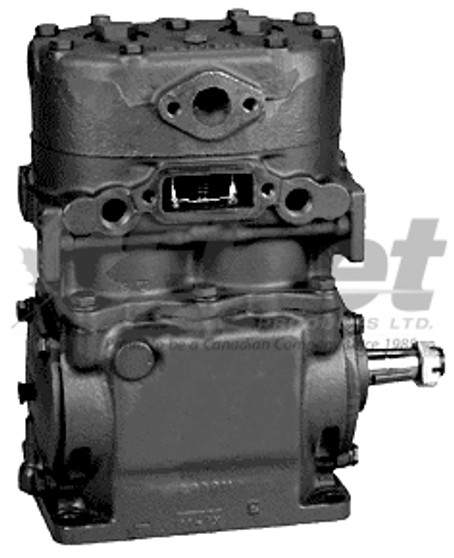

228364X - TF-500 PULLEY DRIVE COMPRESSOR (RIGHT PORTS, 4-HOLE BASE)
PART NUMBER(S):
Fleet Products: 228364X (Remanufactured) | OE: 228364, 227320TP, BX227320X, 275990X
DESCRIPTION:
Model: TF-500 Pulley Drive Compressor
Vehicles: Pulley-driven air brake systems on commercial trucks, trailers, and 18-wheelers
• Cooling: Water cooled
• Drive Type: Pulley (belt) driven
• Mounting: 4-hole base mount
• Air Inlet: Right (viewed from rear)
• Air Outlet: Right (viewed from rear)
• Discharge Type: Flange
• Rated Displacement: ~12 CFM @ 1250 RPM
• Bore x Stroke: Approx. 2.5" x 1.6875"
• Weight: Approx. 46 lbs
• Notes: Base oil feed option
Applications:
Where is it used? Ideal for heavy-duty applications requiring a right-port, 4-hole base TF-500 series pulley compressor. Common in older truck and trailer platforms with water cooling and belt-driven air systems.
CROSS-REFERENCE(S):
228364X, 228364, TF-500, 227320TP, BX227320X, 745227320, 04625227320X
A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Port orientation is right/right; always confirm viewed from rear
✔ Mounting style is 4-hole base; ensure flange alignment before install
✔ Typical flange nut torque is 80–100 ft-lbs
✔ Install using OEM torque and base oil feed orientation procedures
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
