Product Description

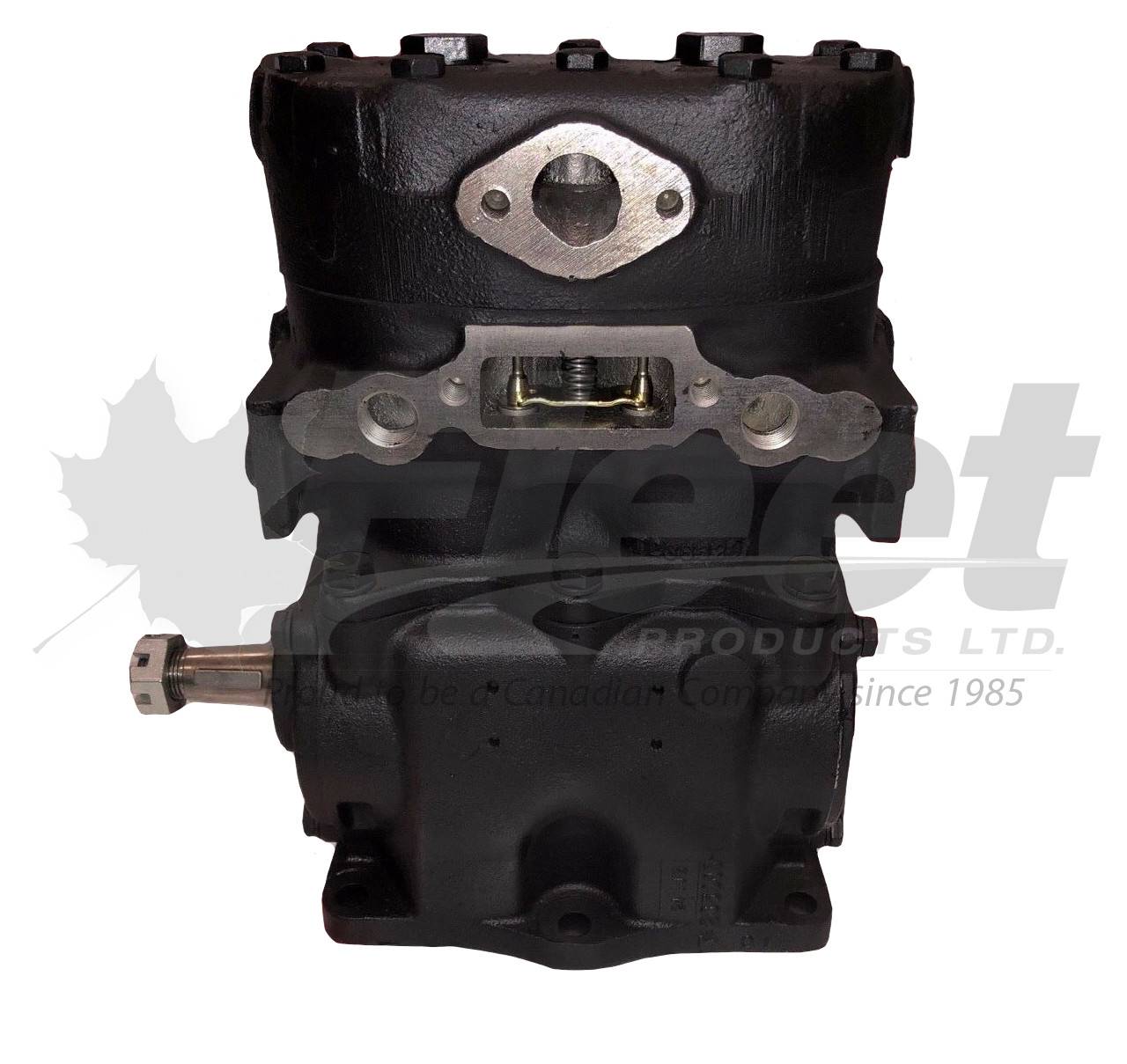

227331X – TF-500 PULLEY DRIVE COMPRESSOR (BENDIX STYLE, 4-HOLE BASE)
PART NUMBER(S):
Fleet Products: 227331X (Remanufactured) | OE: 227331, 227321, TF-500
DESCRIPTION:
Model: TF-500 Pulley Drive Compressor
Vehicles: Heavy trucks, semi trucks, 18-wheelers, commercial trucks
• Compressor Type: Single Cylinder, Single Stage, Reciprocating
• CFM (Displacement): 12.0 @ 1,250 RPM
• Bore: 2.5 in
• Stroke: 1.6875 in
• Cooling: Water Cooled
• Drive Type: Pulley Drive (Belt-Driven)
• Mounting: 4-Hole Base Mount
• Shaft Length: 2.14–2.23 in
• Head Rotation: Right
• Block Rotation: Right
• Air Inlet Port: Left
• Air Outlet Port: Left
• Discharge Type: Flange
• Weight: Approx. 46 lbs
• Condition: Remanufactured
• Features: Base oil feed option, rotatable head, tested and built to OEM specification
Applications:
Used in brake systems for trucks requiring a pulley-driven compressor with compact base mount. Ideal for space-constrained engine bays in fleet and vocational vehicle configurations.
CROSS-REFERENCE(S):
227331, 227321, TF-500, 4-HOLE BASE, 227320TP, BX227320X, 745227320, 04625227320X
A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Use all new installation gaskets and seals
✔ Confirm belt tension and pulley alignment
✔ Head is rotatable to suit left or top discharge configuration
✔ Verify correct shaft engagement depth (2.14–2.23 in)
✔ Core return required for all reman purchases
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
