Product Description

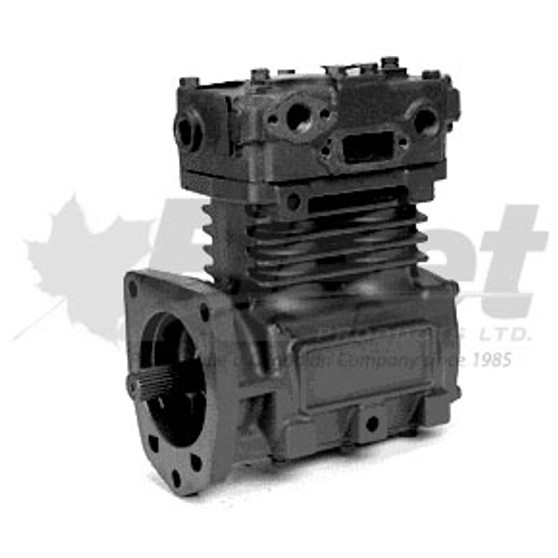

109604X – TF-750 CAT COMPRESSOR (CATERPILLAR 3304 / 3306 / 3406B / 3176)
PART NUMBER(S):
Fleet Products: 109604X (Remanufactured) | OE: 109604, K109604X, K109604, K-109604
DESCRIPTION:
Model: TF-750 CAT Compressor
Vehicles: Caterpillar 3304, 3306, 3406B, 3176
• Compressor Type: Single Cylinder, Single Stage, Reciprocating
• CFM (Displacement): 15.0 @ Rated Engine Speed
• Bore: 3.625" (92.1 mm)
• Stroke: 1.75" (44.45 mm)
• Cooling: Water Cooled
• Drive Type: Gear Drive, Engine Driven
• Mounting: Flange Mount
• Air Inlet Port: Right Side (from rear view), 1-1/4" NPT
• Air Outlet Port: Top or Left (optional configuration), 1" NPT
• Shaft Type: 11-Tooth Spline
• Weight: Approx. 45 lbs
• Condition: Remanufactured
• Features: Built to OEM standards; cleaned, tested, and inspected
• Unloader Assembly: Not included
Applications:
Fits Caterpillar 3304, 3306, 3406B, and 3176 engine platforms used in heavy trucks, off-road equipment, and industrial applications requiring a 15 CFM high-output air brake compressor with flexible porting.
CROSS-REFERENCE(S):
109604X, 109604, K109604X, K109604, K-109604, 5335362, 5335363, 5335379, 5335380, 5335381, 5335382, PM109604X, TF-750, TF750, 107023X
A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Use all new installation gaskets and seals
✔ Port orientation viewed from rear
✔ Mounting bolt torque: 45–50 Nm (33–37 lb-ft)
✔ Unloader bolt torque: 10–14 Nm (7–10 lb-ft)
✔ Valve plate bolt torque: 15–23 Nm (11–17 lb-ft)
✔ Verify spline alignment before installation
✔ Compressor is balanced and tested to OEM specs
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
