TF-750 CAT 3406E AIR BRAKE COMPRESSOR – CERTIFIED REMANUFACTURED
PART NUMBER(S):
Fleet Products: 109142X (Reman) | OE: 102-9553, 1029552, 1029553, 132-9814, 132-9814, 5002983, 5003233, 5005419, 5005419, 800291, 800594, 0R5253, 0R8442
DESCRIPTION:

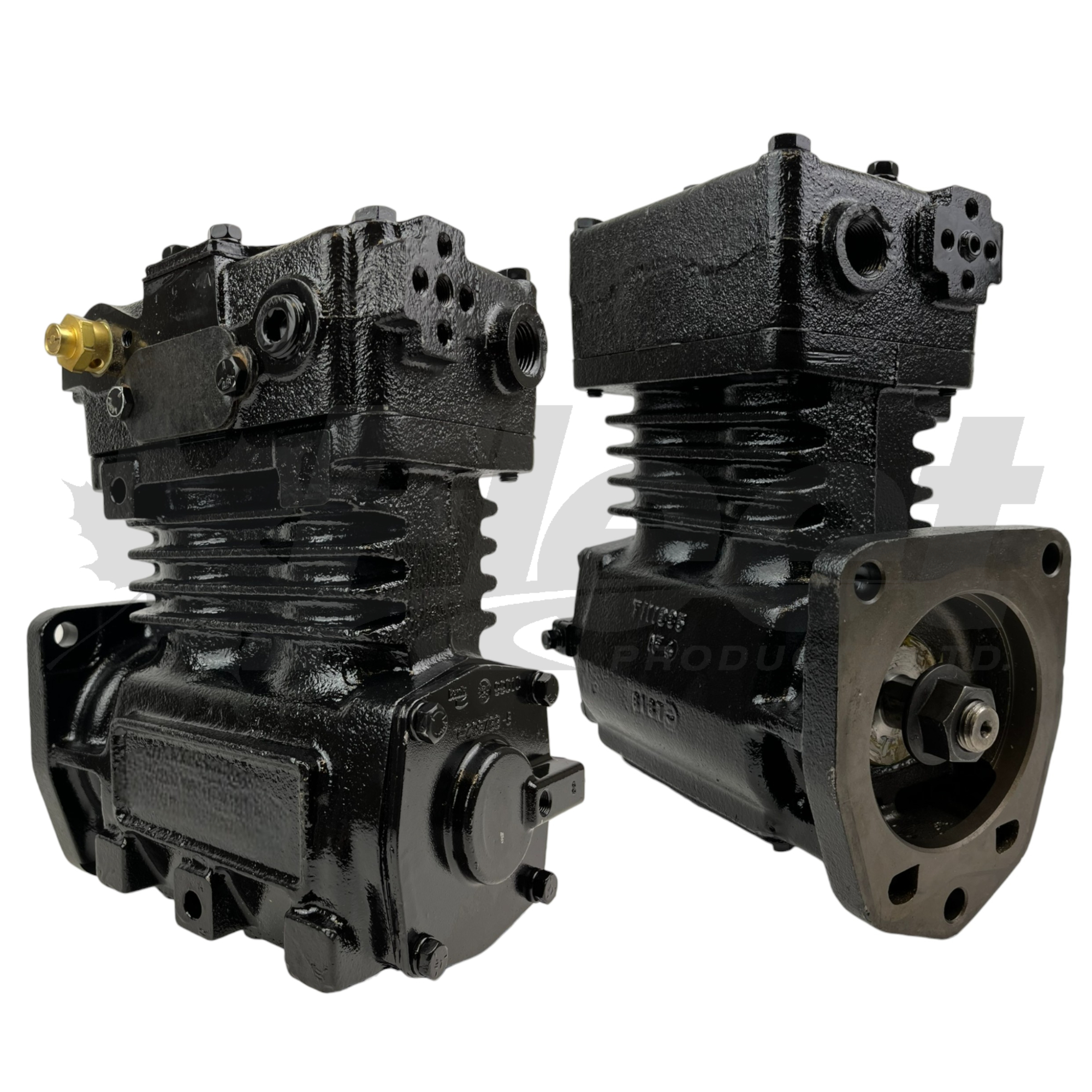

Model: TF-750 Air Brake Compressor
Vehicles: Caterpillar 3406E Engine – On-Highway Applications
• Water-cooled Bendix Tu-Flo 750 series remanufactured compressor
• Left-hand air inlet, optional top or left air outlet
• Bore Diameter 2.78 in.
• Cooling Type Water
• Cylinder Quantity 2
• Discharge Port Diameter 1/2 in. - 14 NPT
• Governor Port Diameter 1/8 in. - 27 NPT
• Mounting Type Flange Mount
• Engine Oil Feed
• Oil Port Diameter 1/8 in. - 27 NPT
• Rated Displacement 16.5 CFM @ 1250 RPM
• Recommended Use For Mack Extended Applications
• Stroke Length 1.87 in.
• Water Port Diameter 1/2 in. - 14 NPT
• Crankshaft thread: Mack-style M20
• Approximate weight: 53 lbs
• Includes installation gaskets and hardware
• Operating pressure: Standard 125–150 PSI system output
• Remanufactured under strict certified process – cleaned, tested, balanced, and resealed
Applications:
This compressor is designed for heavy-duty trucks, buses, and equipment using the Caterpillar 3406E engine. It provides primary compressed air generation for service and parking brake systems, HVAC, suspension, and other pneumatic controls. Ideal for OE replacement in fleet service or reman engine rebuild programs.
CROSS-REFERENCE(S):
0109138, 0109319, 0109321, 018045E, 018124B, 02-01759, 0202738PLUS, 0202739PLUS, 065465, 065466, 065683, 065684, 0R3845, 0R-3845, 0R4740, 0R5253, 0R8340, 0R-8340, 0R8442, 0R-8442, 0R8549, 0R-8549, 1029551, 102-9551, 1029553, 102-9553, 109138, 109138X, 109141, 109197, 109319, 109319X, 109321, 109322, 109425, 109425X, 109816, 109824, 109860, 109861, 109861X, 109864, 1182798, 118-2798, 118-2806, 1316679, 131-6679, 1316680, 131-6680, 1329813, 132-9813, 1329814, 132-9814, 1337032, 133-7032, 1399009, 139-9009, 1439185, 143-9185, 1439186, 143-9186, 1440748, 144-0748, 1483684, 148-3684, 1575365, 157-5365, 1647564, 164-7564, 1647566, 164-7566, 1647567, 164-7567, 1651790024, 165-179-0024, 1659169, 165-9169, 1659170, 165-9170, 1668305, 166-8305, 1671288, 167-1288, 1855145, 185-5145, 2158055, 215-8055, 2342413, 234-2413, 320010, 3547528, 354-7528, 5001522, 5001522X, 5001523, 5001533, 5001534, 5001773, 5001774, 5001788, 5001789, 5002032, 5002032X, 5002033, 5002082, 5002652, 5002713, 5002826, 5002826X, 5002983, 5002983BXR, 5002983X, 5002984, 5002984BXR, 5002984X, 5003228, 5003228X, 5003229, 5003230, 5003231, 5003232, 5003234, 5003235, 5003236, 5004188X, 5005419, 5005421, 5005422, 5005478, 5005491, 5005491X, 5005606, 5005790, 5005790X, 5007469, 5007469X, 5007471, 5011522, 613909, 61-3909, 65466, 65684, 6I3906, 6I-3906, 701917AT, 745065684, 745-065684, 745109861, 745-109861, 7455002984, 745-5002984, 7455002984X, 745-5002984X, 745800292, 745-800292, 745X5002983, 745X5002984, 767653128344, 800256, 800291, 800292, 800594, 9Y6320, 9Y-6320, BEN5002983X, BX065465, BX065466, BX109138, BX109141, BX109319, BX109321, BX109322, K046146, OR8442, OR-8442, R9555002983X, R9555002984X, R9555005790X, S13753, 102-9553, 1029552, 1029553, 132-9814, 132-9814 (REAR COVER ROTATED 180°), 139-9009, 164-7564, 5001533, 5001534, 5001789, 5001789 (REAR COVER ROTATED 180°), 5002082, 5002713, 5002713 (109142X HAS REAR COVER ROTATED 180 MUST REUSE STUDS), 5002713 (REAR COVER ROTATED 180° (STUDS), 5002826, 5002826 (1029553X), 5002983, 5003233, 5005419, 5005419 ( - REAR COVER ROTATED 180°), 5005421, 5005479, 5005491, 5005492, 5007471, 800259, 800259 | 5001789 / 5002713 (STUDS) / 5005419 / 132-9814 - REAR COVER ROTATED 180°, 800291, 800594, OR5253, OR8442
A cross-reference listing means this part may be a compatible replacement for these part numbers based on OEM or distributor data.
IMPORTANT INSTALLATION NOTES:
✔ Verify discharge port orientation (top or left) to match vehicle plumbing layout
✔ Inspect gaskets and mounting surfaces for warping or corrosion before install
✔ Use only with compatible CAT 3406E engine configurations
✔ Core return must be like-for-like TF-750 casting to receive full credit
✔ Pre-lube and rotate by hand before startup to prevent dry-run damage
