Product Description

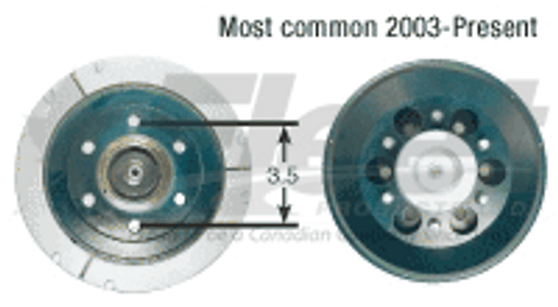

1090-09500-01X - KYSOR 9" K-26 FAN CLUTCH
PART NUMBER(S):
Fleet Products: 1090-09500-01X (Remanufactured) | OE: 1090-09500-01, Bendix 9908501, Kit Masters 8901N
DESCRIPTION:
Model: Kysor K-26 Rear Air 9" Fan Clutch
Vehicles: International, Freightliner, Kenworth, Mack, Peterbilt, Sterling, Volvo, Western Star
• Fan Pilot Diameter: 2.56 inches
• Fan Bolt Circle: 3.5 inches
• Drive Bolt Circle: 3.5 inches
• Back Pulley Diameter: 2 9/16 inches (65.02 mm)
• Overall Length: 3-15/32 inches (approx. 88.1 mm)
• Drive Type: Rear air, On/Off Kysor-style fan clutch
• Features: Dual seal shaft design, high-torque friction lining
• Safety: Patented Auto Lock fail-safe system
• Compatibility: Direct fit for K22, K26, K30, and K32 rear air fan clutch systems
Use Kit: KYS9500SKL
Applications:
Rear air-engaged fan clutch used across a wide range of heavy-duty truck makes. Designed for 30" and larger cooling fans in demanding vocational, highway, and municipal duty cycles. This is a premium remanufactured K-26 unit used as a direct drop-in for multiple OE assemblies.
CROSS-REFERENCE(S):
1090-09500-01, 1090-08500-01, 10900850001, 10900950001, 10900950001B, 1090-09500-01B, 10900960001, 10900960001B, 1090-09600-01, 1090-09600-01B, 10900965001, 10900965001B, 1090-09650-01, 1090-09650-01B, 10900975001, 10900975001B, 10900980001, 10900980001B, 1090-09800-01, 1090-09800-01B, 10900990001, 10900990001B, 10900995001, 10900995001B, 1090-09900-01, 1090-09900-01B, 1090-09950-01, 1090-09950-01B, 1090-09650-01RF, 10900965001RF, 2501022C91, 2509380C91, 2514343C91, 2602141C91, 3415013, 3915592, f8hz8a627ua, f8hz-8a627-ua, 65140701, 6514-070-1, 9908500, 9908501, 9908503, 9908504, 8501X, 85108716, 85111808, 85114233, 85134489, ABP N20 8901N, ABPN208901N, FLT8901N, KM N20 8901N, KMN208901N, 8901N24KM, 8901N-24KM, 8901NKM, KMI8901N, KMI8801X, FC9908504, 8801, 8801X, 8805X, 8801N, 8901X, 8905N, 3443-8801X, 3443-8901N, 010033269, HOR9908500, HOR9908501, HOR9908503, HOR9908504, KYS1090-09600-01, KYS10900950001, KYS10900960001, 701970AT
A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Torque clutch-to-hub bolts to 50 lb-ft
✔ Torque fan-to-clutch bolts (2.56" pilot) to 26 lb-ft
✔ Replace pulley bearings with each fan clutch installation
✔ Use verified rebuild and seal kits such as 8500SKL where required
✔ Verify 2.56" fan pilot and 3.5" bolt circles for both drive and fan mount
✔ Ensure system matches rear air supply configuration
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
