Product Description
108380X - FD-L FAN CLUTCH
PART NUMBER(S):
Fleet Products: 108380X (Remanufactured) | OE: 108380, 108380RX, 108378X
DESCRIPTION:
Model: FD-L
Vehicles: Freightliner, Ford, International – Class 6–8 diesel truck platforms

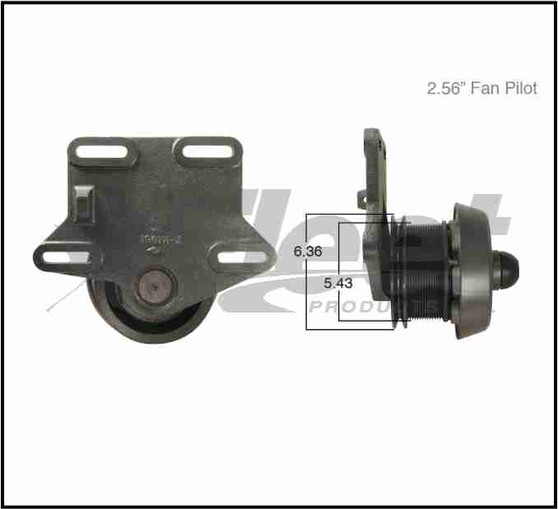

• Fan Pilot Diameter: 2.56 inches
• Back Pulley Diameter: 5.43 inches, 6.36 inches
• Type: Spring-engaged, pneumatic on/off
• Bearings: Angular contact
• Operation: Heat-activated, belt-driven
• Country of Origin: USA
• Warranty: 12 months / 100,000 miles
Applications:
Engineered as a direct-fit reman replacement for trucks originally equipped with Bendix FD-L 108380 or 108378 fan clutch. Common on diesel cooling systems for Freightliner, Ford, and International trucks requiring spring-engaged pneumatic control.
CROSS-REFERENCE(S):
108378, 108378RX, 108378X, 108380, 108380RX, ABP N20 108380X, ABPN20108380X, FLT108380X, FLT108378GTN, F2HT8A627CA, F2HT8A627CB, F3HT8A627SA
A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Tighten locknut to 90 foot-pounds (101 N·m) as per Kit Masters FD-L installation procedure
✔ Align and seat lock washer tabs before locking the nut
✔ Install cotter pin and dust cap after torque spec is met
✔ Follow engine OEM guidelines for belt tension and fan spacing
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
