Description
107942X - FD-L CUMMINS FAN CLUTCH
PART NUMBER(S):
Fleet Products: 107942X (Remanufactured) | OE: 107942, 107942RX, 107889X
DESCRIPTION:

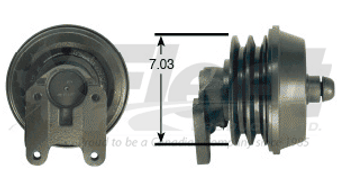

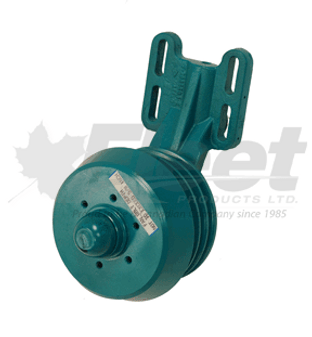

Model: FD-L Cummins
Vehicles: Cummins-equipped Class 6–8 trucks (Freightliner, International, Mack, Ford, Navistar)
• Fan Pilot Diameter: 2.56 inches
• Back Pulley Diameter: 7 inches
• Type: Spring-engaged, pneumatic on/off
• Bearings: Angular contact
• Width: Approx. 12 inches
• Locknut Torque: 90 ft-lbs (101 N·m)
Applications:
This FD-L style reman fan clutch is engineered for Class 6–8 trucks using Bendix-style clutches. Designed for direct replacement on Cummins-powered platforms in Freightliner, Ford, International, and Mack vehicles. All wearable components are rebuilt to OEM specifications with no retrofit required.
CROSS-REFERENCE(S):
107889, 107889RX, 107889X, 107942, 107942RX, 107942X, ABP N20 107942X, ABPN20107942X, FLT107889GTN, FLT107889X, FLT107942X, K5 107942X, K5107942X, KM N20 107942X, KMN20107942X, KMI107942X, KC107942X, 3443-107942X, 107942BXR, 107942BXW, 745107942, 745X107942, 745-X107942, BAN107942, BW 107942, BW107942, BX107942, BX107942B1, TWDBEN107942, ZAC107942, ZBH791095, 791095, F1HT8A627DA, F1HT8A627DB, F3HT8A627NA, F3HZ8A627H, 3948335, 107942X-MD, 107942XMDA cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Tighten locknut to exactly 90 ft-lbs (101 N·m); do not over-torque
✔ Ensure lock washer tabs align and engage the locknut slot
✔ Always install cotter pin and dust cap to secure fan hub assembly
✔ Confirm belt tension and fan spacer as per engine manufacturer specs
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
