Product Description

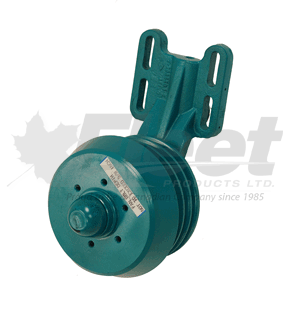

107941X - FD-L FAN CLUTCH (CUMMINS)
PART NUMBER(S):
Fleet Products: 107941X (Remanufactured) | OE: 107941, 107941RX, 107878
DESCRIPTION:
Model: FD-L Single-Speed Remanufactured Fan Clutch
Vehicles: Cummins-powered trucks (Freightliner, Ford, International, Mack, Volvo)
• Fan Pilot Diameter: 2.00 inches
• Back Pulley Diameter: 7.50 inches
• Drive Type: Spring-engaged, pneumatic on/off
• Friction Material: Kevlar® reinforced for extended wear
• Bearings: Upgraded angular contact for durability
• Locknut Torque: 90 ft-lbs (101 N·m)
• Weight: Approx. 51 lbs
Applications: Built for Class 6–8 diesel trucks using the FD-L platform. Designed for direct-fit OE replacement in extreme duty cycles—fleet, vocational, and long-haul cooling systems.
CROSS-REFERENCE(S):
107878, 107878RX, 107878X, 107941, 107941RX, 107941X, 107878rx, 107941x, 107941rx, 107900, 107900RX, 745-107941, 745X107941, 745107941, 745-X107941, 107941GTN, 107941B1, 107941BXR, 107941BXW, BAN107941, BW107941, BW 107941, BX107941, ZAC107941, ABP N20 107941X, ABPN20107941X, FLT107941X, FLT107878X, KMI107941X, 3443-107941X, KM N20 107941X, KMN20107941X, F1HT8A627GA, F1HZ8A627G, F3HT8A627RA, F3HZ8A627C, TWDBEN107941
A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Torque locknut to 90 ft-lbs (101 N·m) per OEM install specs
✔ Secure lock washer tab after torquing to prevent backing off
✔ Install cotter pin and dust cap to complete the clutch mounting
✔ Verify pilot diameter and bolt circle prior to installation
✔ Always test for air engagement and blade spin clearance before finalizing
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
SUPPORT & ORDERING
For technical support, installation guidance, or to confirm fitment, Call: 1-877-243-0442 | Email: sales@fleet-products.com
