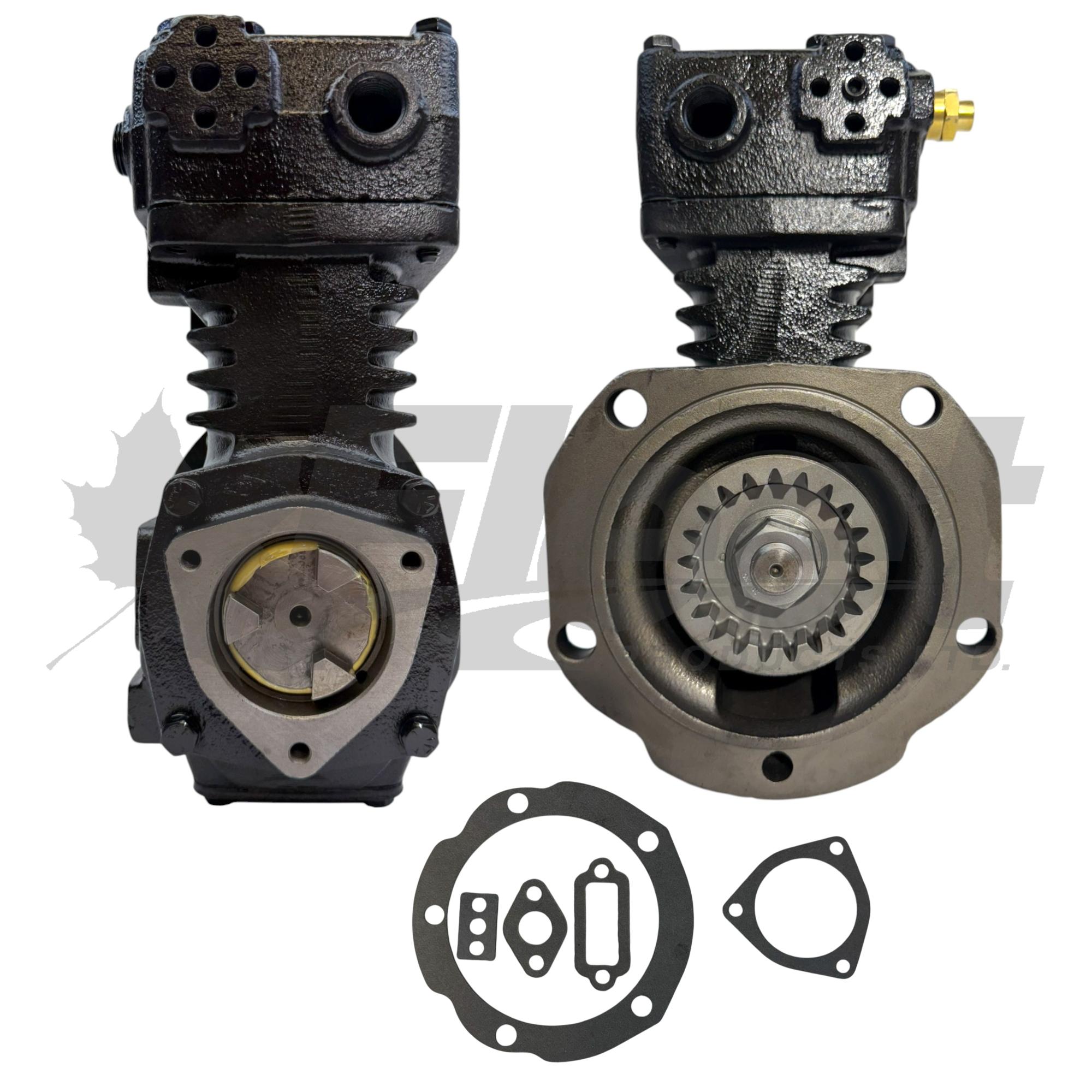

TF-750 DETROIT COMPRESSOR – REMAN
PART NUMBER(S):
Fleet Products: 107623X (Remanufactured) | OE: 107784, 23505235, R3505235, 107096, 109868, 23505235, 65217
DESCRIPTION:
Model: TF-750 Detroit
Vehicles: Detroit Diesel 60 Series, Heavy Trucks, Semi Trucks, 18 Wheelers, Commercial Trucks
• Cooling: Water/Air
• Air Inlet: Left
• Air Outlet: Top/Left (optional)
• Mounting: Flange Mount, Engine Drive
• Tilt: 0° Tilt
• Rated Displacement: 16.5 CFM @ 1,250 RPM
• Weight: Approx. 57 lbs
• Discharge Type: Optional Top or Left Discharge
• Application: Detroit Diesel 60 Series, Thru-Drive, Engine Drive
Applications:
The TF-750 Detroit Compressor (107623X) is designed for Detroit Diesel 60 Series engines, commonly used in heavy-duty trucks and commercial vehicles. It features water and air cooling and is built for high-efficiency air compression for air brake systems. The compressor can be used with either a top or left discharge and is engineered to provide 16.5 CFM at 1,250 RPM. EL16053X Compressor may also be used for this application.
CROSS-REFERENCE(S):
107784, 23505235, R3505235, 107623, TF750, 109868, 107623X-BW, 107096, 107623B1, 107623X-107623, 3949432, 5000191, 5000193, 65671, 745-107623X, 800017, BW 107623X, BX107623B1, BX107623X, EBN107623X, R23505235, R955107623X, 065217BXW, 5MB533, 6316568A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Cylinder head can be installed in two positions (180° apart).
✔ Three water coolant ports provide a choice of connections.
✔ Governor mounting surfaces at both the front and rear of the cylinder head.
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
