Description

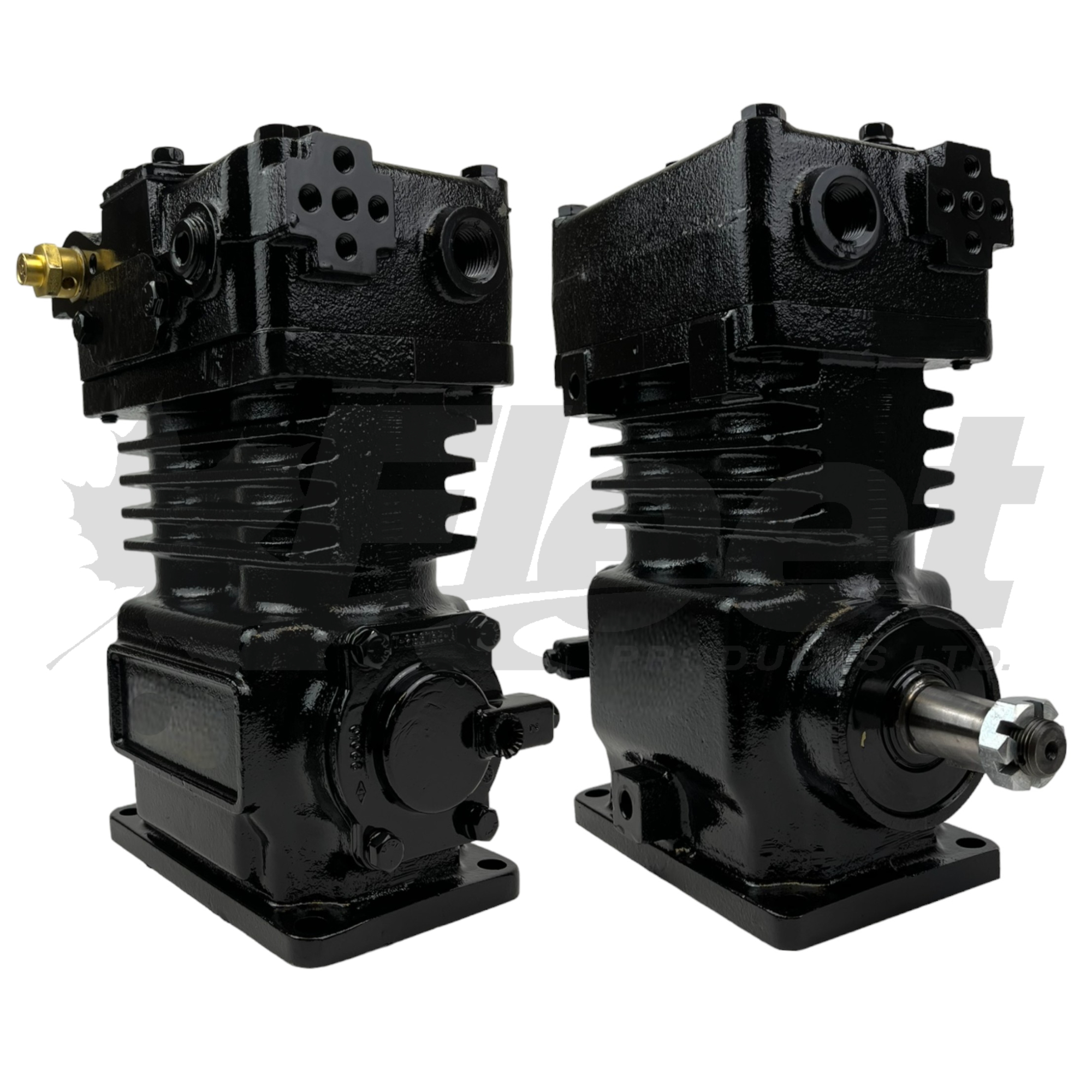

107514X – TF-550 PULLEY DRIVE "CERTIFIED REMANUFACTURED" AIR BRAKE COMPRESSOR
PART NUMBER(S):
Fleet Products: 107514X (Remanufactured) | OE: 107514, EL13060, 108277X, 107008, 122-8966, 1228966, 5001300
DESCRIPTION:
Model: Tu-Flo 550 (Pulley Drive)
Vehicles: CAT, Navistar, Ford F-series heavy-duty
• Mounting: Vertical 4-hole base (pulley drive configuration)
• Cooling: Dual-cooled – Water-cooled head / Air-cooled block
• Air Inlet: Left side
• Air Outlet: Left or Top (threaded/flange discharge ports)
• Displacement: 13.2 CFM @ 1250 RPM
• Bore: 2.78 in
• Stroke: 1.5 in
• Cylinder Configuration: 2-cylinder, single-stage
• Operation: Belt-driven (engine powered)
• Ports:
– Discharge: 1/2 in. - 14 NPT
– Governor: 1/8 in. - 27 NPT
– Oil: 1/8 in. - 27 NPT
– Water: 1/2 in. - 14 NPT
• Approximate Weight: 53 lbs
• Includes: Gear and gasket installation kit
Applications:
Designed for highway tractors, fleet trucks, and industrial diesel equipment equipped with Caterpillar, Navistar, and Ford engines. Ideal for vehicles requiring pulley-driven air brake compressor systems with base-mounted vertical fitment. EL13060X Compressors may also be used for this application.
CROSS-REFERENCE(S):
0107008, 0107098, 0107514, 0108111, 0108112, 0108588, 0108589, 065205, 065302, 107008, 107098, 107514, 107514B1, 107514X, 107514X-BW, 108111, 108112, 108277, 108277X, 108588, 108589, 108598, 1228966, 122-8966, 1266110, 126-6110, 1689954C91, 1689954C92, 1694953, 1694953C91, 5000130, 5000594, 5005028, 61130309, 65205, 65302, 700702AT, 745-107514X, 85102179, BEP107514X, BW 107514X, BX107514B1, BX107514X, EBN107514X, EL13060, EL13060X, F1HT2875BA, F1HT2875BB, HONYWEL 107514X, MERITOR R955107514X, MERITOR R955EL13060X, MERR955107514X, MID107514X, MID108277X, NAVISTAR FLT114, R955107514X, 5015314, 107008, 107514A cross-reference listing means this part is a suitable replacement for listed part numbers. Confirm all specs before ordering.
IMPORTANT INSTALLATION NOTES:
✔ Confirm pulley and 4-hole base compatibility with belt-drive system
✔ Choose appropriate air outlet (top or left) for plumbing configuration
✔ Threaded/flange discharge ports — verify match with vehicle lines
✔ Inspect all supplied gaskets and install with correct torque spec
✔ Return core must match TF-550 pulley-style compressor
✔ Flush coolant and air systems before installation
✔ View port orientation from rear for accurate routing
SOLD AS REMANUFACTURED – CORE RETURN REQUIRED
Built to OEM standards — thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
