Product Description

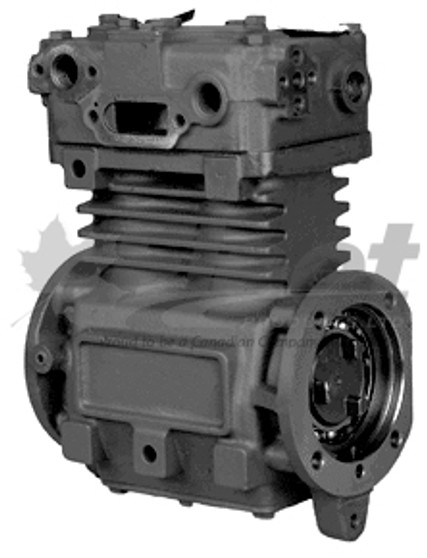

TF-550 CUMMINS COMPRESSOR – REMAN
PART NUMBER(S):
Fleet Products: 107506X (Remanufactured) | OE: 65197, 107000, 107974
DESCRIPTION:
Model: TF-550 Cummins Compressor
Vehicles: Cummins ISM, N14, M11 engines, Heavy Trucks, Semi Trucks, 18 Wheelers, Commercial Trucks
• Air Inlet: Left
• Air Outlet: Optional, Top or Left
• Mounting: Flange Mount
• Cooling: Water Cooled
• Number of Cylinders: 2 (Two-cylinder, single-stage, reciprocating)
• Rated Displacement: 13.2 CFM @ 1,250 RPM
• Weight: Approx. 53 lbs
• Supplied With: Gears & Gaskets
• Core Group: 550C
• Function: Pressurizes air for actuation of air brakes
Applications:
The TF-550 Cummins Compressor is designed to work with Cummins ISM, N14, and M11 engines, commonly used in heavy-duty vehicles like trucks and semi-trucks. This compressor is a reliable component for air brake systems, delivering 13.2 CFM at 1,250 RPM, and is built to OEM standards for durability and performance.
CROSS-REFERENCE(S):
65197, 107000, 107974, 107975, 107506, TF-550, 5001710, 106268, 106268X, 75 TILT, BNE289925, HVG289925X, BWX289925X, BXX289925X, 175289925X, BWR289925, E-BN289925X, ZZ289925X, H289925X, 745X289925, EL16050, 04625107506X, 046255012533X, 046255014428X, 0R1623, 0R1624, 0R8442, 102-9551, 102-9553, 1029551, 1029553, 107000, 107506, 107506B1, 107506BXR, 107506X-BW, 107506XBW, 107974, 107975, 108583, 109138, 109139, 109141, 109142, 109142X, 109197, 109319, 109321, 109322, 10R9375, 139-9009, 1399009, 143-7186, 143-9186, 1437186, 1439186, 164-7566, 164-7567, 1647566, 1647567, 167-1288, 1671288, 1672563C92, 1694006C91, 170.5002983, 170.AC5012533, 1705002983, 170AC5012533, 174107506X, 175107506X, 20R0176, 20R0177, 20R0178, 223-3637, 2233637, 2531736, 3069211, 3074470, 3166445, 3403417958, 3417958NX, 3417958RX, 3522291, 3609999, 5001533, 5001534, 5001710, 5002082, 5002082X, 5002826, 5002826X, 5002983, 5002983B1, 5002983BXR, 5002983X, 5002983X-BW, 5002983XBW, 5003231, 5003232, 5003233, 5003264, 5005421, 5005421X, 5005422, 5005491, 5005491X, 5005492, 5005496, 5005790, 5007468, 5007468X, 5007469, 5007469X, 5007471, 5008609, 5011427, 5012532, 5012532X, 5012533, 5012533BXR, 5012533X, 5014428, 5014428BXR, 5014428X, 53-107506X, 53107506X, 61-3909, 613909, 65197, 65465, 65466, 70001-8001, 700018001, 745-107506X, 745-5002983X, 745-5012533X, 745-X107506, 745-X5002983, 745107506X, 7455002983X, 7455012533X, 745X-107506, 745X-5012533, 745X107506, 745X5002983, 745X5012533, 745X5OO2983, 800291, 800725, 801463, 9Y-6320, 9Y6320, ABPN13AC0R8442, ABPN13AC20R0177, ABPN13AC20R0178, ABPN13AC3417958, BAR107506, BAR5012533, BAR5014428, BBH-107506, BBH-109142, BBH107506, BBH109142, BC1-25555, BC1-25566, BC125555, BC125566, BC2-25565, BC2-25567, BC225565, BC225567, BE107506, BE107506X, BE5002983X, BEN5012533X, BEX5012533X, BH5002983X, BW 5012533, BW 5014428, BW R107506, BW R5014428, BW107506, BW107506X, BW5002983X, BW5012533, BW5012533X, BW5014428, BWR107506, BWR5014428, BX107506X, BX065197, BX107000, BX107506, BX107506B1, BX107506X, BX107974, BX107975, BX108583, BX5002983, BX5002983B1, BX5002983X, BX5012533X, BX5014428X, BXR107506, BXR107506X, BXX107506X, CC107506, E-BN107506X, E12977284, EBN107506X, EL13040, EL13040X, EUEBN107506X, F5012533X, FLTBC106, FRL 42018134, FRL 42032285, H5002983X, HVG107506X, HVG5012533X, HVG5014428X, JW5002983X, K020283, K020284, K020284X, K046146, K056647, K056647BXR, K056647X, K056649, KN13040X, MB107506X, MI107506X, MSBX107506X, N13AC, OR-8442, OR107506, OR1624, OR8442, P107506, R107000, R107506, R107506X, R107974, R108583, R955107506X, R9555002983X, R9555012533X, R9555014428X, R955EL13040X, R955K056647X, S13753, WBW-107506X, WBW107506X, ZZ107506X
IMPORTANT INSTALLATION NOTES:
✔ End cover cap screws: torque to 175–225 inch pounds in a cross pattern.
✔ 1/8" NPT plugs: torque to 85–105 pound inches.
✔ 1/2" NPT plugs: torque to 200–270 pound inches.
✔ Crankshaft nut (for pulley/coupling/gear): do not exceed 120 foot pounds.
✔ Cap screw securing rear coupling: torque to 175–225 inch pounds.
✔ Protect all ports and shaft ends during storage/handling.
✔ Cylinder head can be installed in four positions (90° apart).
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
