Product Description

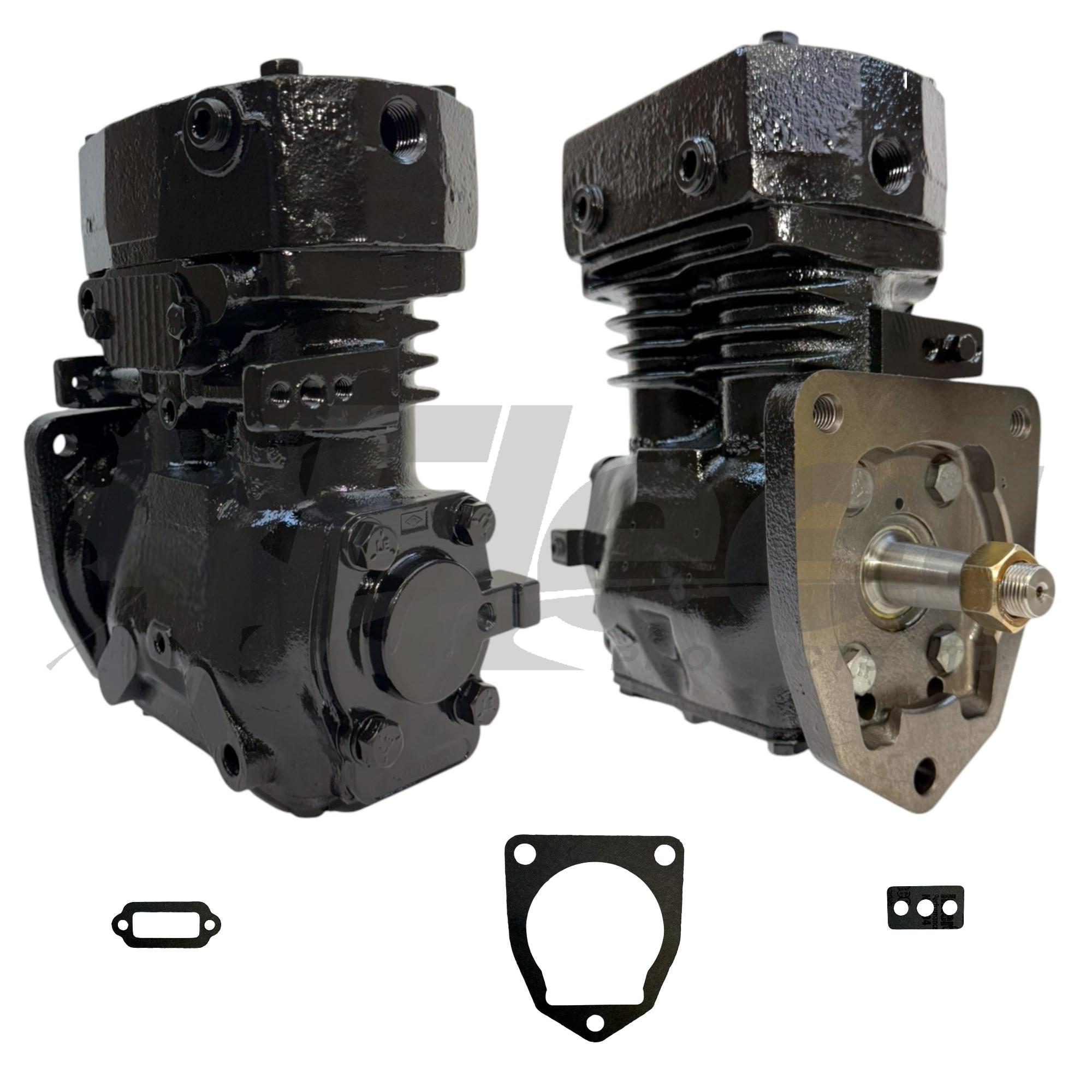

106770X - TF-501 CAT COMPRESSOR
PART NUMBER(S):
Fleet Products: 106770X (Remanufactured) | OE: 106770, 106967, 286622
DESCRIPTION:
Model: TF-501 CAT Compressor
Vehicles: Caterpillar 3176B Engine
• Cooling: Water Cooled
• Air Outlet: Top / Flange Discharge
• Drive Type: Gear Driven
• Mounting: 3-Hole Flange Mount
• Head Rotation: Right
• Block Rotation: Right
• Oil Feed: End Cap
• Oil Drain: Flange
• Shaft: 22 Spline, .86 in. external length
• Bore: 2.75 in.
• Stroke: 1.50 in.
• Rated Displacement: 13.0 CFM @ 1250 RPM
• Overall Dimensions: 12.02 in. H × 5.45 in. W × 9.79 in. L
• Approximate Weight: 49 lbs.
Applications:
Built for CAT 3176B engine platforms requiring a TF-501 compressor. Common in heavy-duty truck and semi truck air brake systems. Installation requires alignment of head and end cap orientation per OEM guidance.
CROSS-REFERENCE(S):
106770, 106967, 286622, 106944, 108217, EL13301, EL13301X, EL1300, NT7030, BX106770, 286622X
A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Head and end cap orientation must be adjusted before installation as per OEM spec
✔ Port orientation is viewed from the front of the compressor
✔ Includes installation gasket set
✔ Torque flange mount bolts to 80–100 ft-lbs during installation
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
