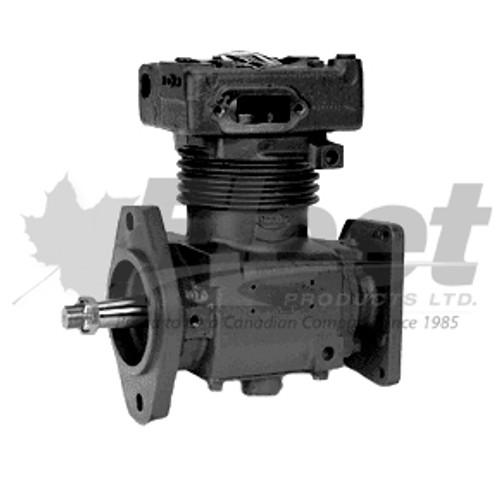

BX-2150 PULLEY DRIVE COMPRESSOR – REMAN
PART NUMBER(S):
Fleet Products: 104041X (Remanufactured) | OE: 104041, KN86020, BX-2150, BX2150, 107221, 106439X, 106439, 104039, 104744, 107221
DESCRIPTION:
Model: BX-2150 Pulley Drive Compressor
Vehicles: Heavy Trucks, Semi Trucks, 18 Wheelers, Commercial Trucks
• Cooling: Water/Air
• Air Inlet: Left (viewed from rear)
• Air Outlet: Optional (Two 1/2" NPT discharge ports - top and side of cylinder head)
• Mounting: 4-Hole Base Mount, Vertical Mount
• Drive: Pulley Drive
• Discharge Type: Threaded Discharge
• Cylinder Type: Single Cylinder, Single Stage Reciprocating Compressor
• Rated Displacement: 9.5 CFM at 1250 RPM
• Weight: Approx. 35 lbs (Haldex); 43.98 lbs (Traction)
• Lubrication: Engine Pressurized Oil System
• Cylinder Head: Iron Casting, Can Be Installed in Four Positions (90° apart)
• Water Ports: Three 1/2" NPT Water Ports
• Governor Ports: Two 1/8" NPT Governor Ports
• Features: Low Profile Case, May Have Old Style Head
Applications:
The BX-2150 Pulley Drive Compressor is designed for heavy-duty applications, particularly for air brake systems in heavy trucks, semi trucks, and 18 wheelers. This compressor features a water-cooled head with an air-cooled block, ensuring optimal performance. It comes with threaded discharge ports and is built to meet OEM specifications, making it ideal for general use in commercial vehicles. KN96020X Compressors may also be used for this application.
CROSS-REFERENCE(S):
104041, KN86020, BX-2150, BX2150, 107221, 106439X, 106439, 104039, 104039X, BEN109273X, BEN109079X, 108854X, 109273X, R955104039XA cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Cylinder head cap screws: torque to 175–225 pound inches.
✔ 1/8" NPT plugs: torque to 85–105 pound inches.
✔ 1/2" NPT plugs: torque to 200–270 pound inches.
✔ Crankshaft nut (for pulley/coupling/gear): do not exceed 120 foot pounds.
✔ Cap screw securing rear coupling: torque to 175–225 inch pounds.
✔ Protect all ports and shaft ends during storage/handling.
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
