Product Description

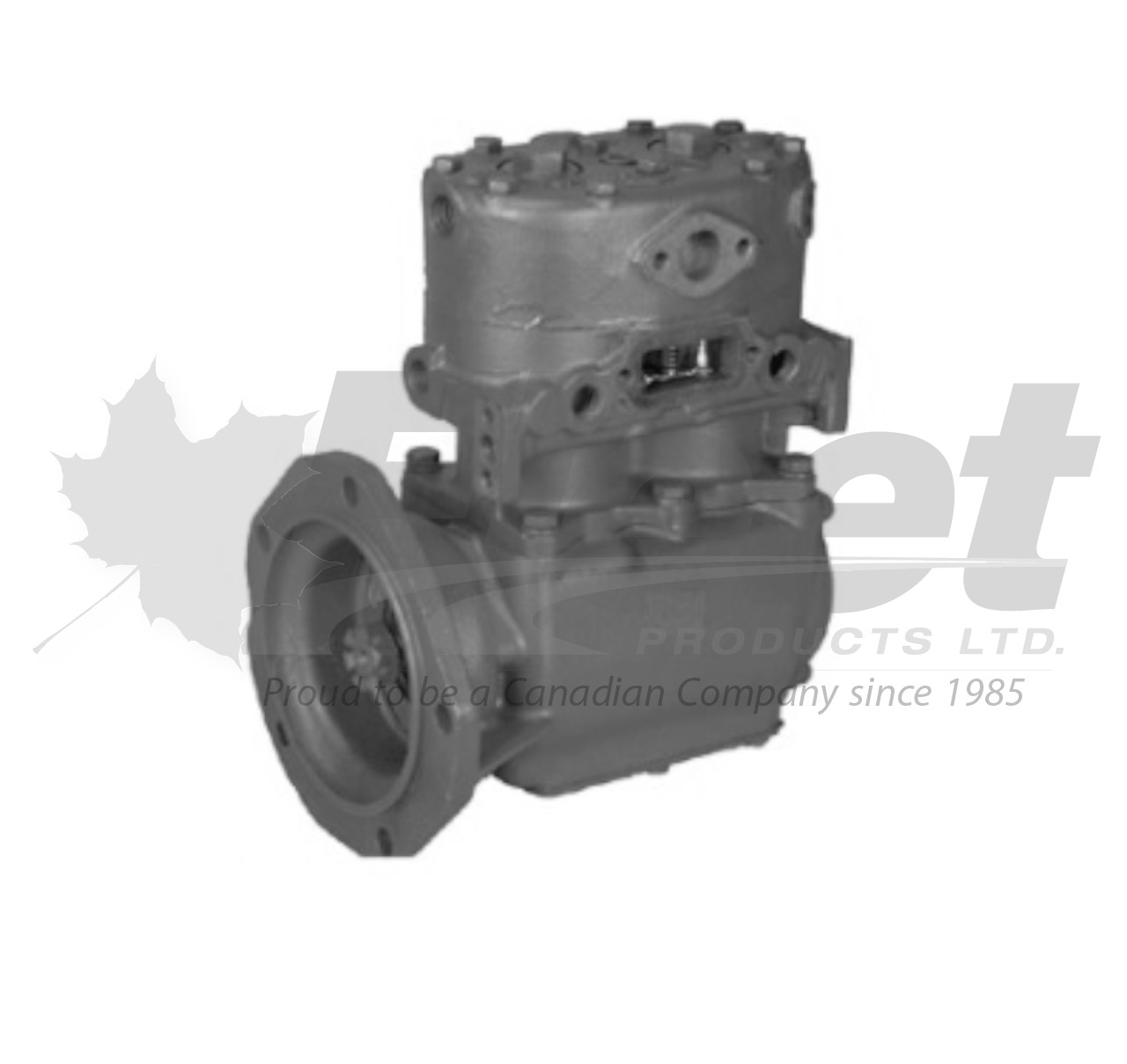

101158X – TF-700 DETROIT COMPRESSOR (45° TILT)
PART NUMBER(S):
Fleet Products: 101158X (Remanufactured) | OE: BNE289925, EL16050, 175289925
DESCRIPTION:
Model: TF-700 Detroit Compressor (45° Tilt)
Vehicles: Detroit Diesel 8V92 Series, 45° Tilt Engines
• Bore: 3.15"
• Stroke: 1.87"
• Rated Displacement: 15.5 CFM @ 1250 RPM
• Mounting: Flange Mount, 45° Tilt
• Cooling: Water Cooled
• Air Inlet: Right (viewed from rear)
• Air Outlet: Top or Right (viewed from rear)
• Drive Type: Gear Drive
• Core Group: 501H
• Approximate Weight: 46 lbs
Applications:
Used in Detroit Diesel 8V92 engine platforms requiring a 45° tilted flange-mount air compressor. Delivers high airflow output for heavy-duty truck air brake systems. Replaces legacy EL16050-style compressors.
CROSS-REFERENCE(S):
BNE289925, HVG289925X, BWX289925X, BXX289925X, 175289925X, BWR289925, E-BN289925X, ZZ289925X, H289925X, 745X289925, EL16050, 0101139, 0101158, 0101418, 0101972, 0102040
A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Confirm 45° tilt compatibility with Detroit Diesel block
✔ Verify right-side air inlet and top/right discharge orientation
✔ Gear drive must align precisely with engine timing gear
✔ Torque flange nuts to 80–100 ft-lbs as per TF-series guidelines
✔ Always flush cooling system and replace gaskets at install
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
SUPPORT & ORDERING
For technical support, installation guidance, or to confirm fitment, Call: 1-877-243-0442 | Email: sales@fleet-products.com
