Product Description

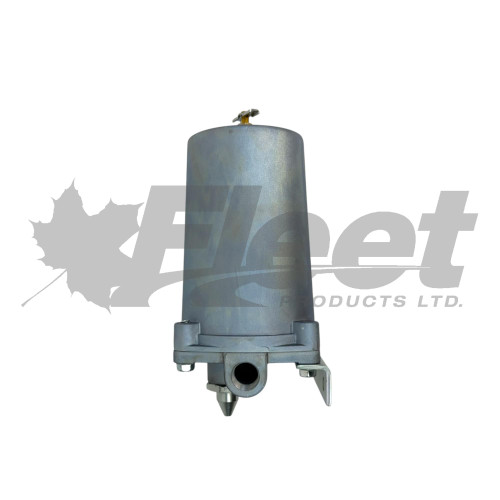

A72420-G – Alcohol Evaporator – 40 oz Capacity | ½″ NPT Ports
PART NUMBER(S):
A72420-G (Haldex)
AE72420 (Midland)
A72420 (Pro Trucking Products)
DESCRIPTION:
Automatic alcohol evaporator that keeps air lines and reservoirs free of ice by vaporizing methyl alcohol as compressed air passes through the unit. All-steel housing with integrated safety valve for pressure protection. Rated capacity of 40 oz of methyl alcohol for prolonged anti-icing performance. ½″ NPT inlet and outlet ports integrate easily into standard air-brake plumbing. Clamp-on bracket with 2.5″ bolt-center spacing for straightforward installation. Steam-cleanable design protects internal components from moisture and residue.
SPECIFICATIONS:
-
Capacity: 40 oz (1.18 L) methyl alcohol
-
Ports (NPT): ½″ inlet, ½″ outlet
-
Bracket: Clamp-on style with 3/8″ holes on a 2.5″ bolt circle
-
Materials: Steel housing, nylon bearing, epoxy-coated springs
-
Safety: Integrated pressure-protected safety valve
APPLICATIONS:
Ideal for truck, trailer, bus, and heavy-equipment air-brake systems operating in extreme cold (down to –65 °C/–85 °F).
CROSS-REFERENCE(S):
A72420, AE72420, Pro Trk A72420, Midland AE72420, Haldex A72420
