Product Description

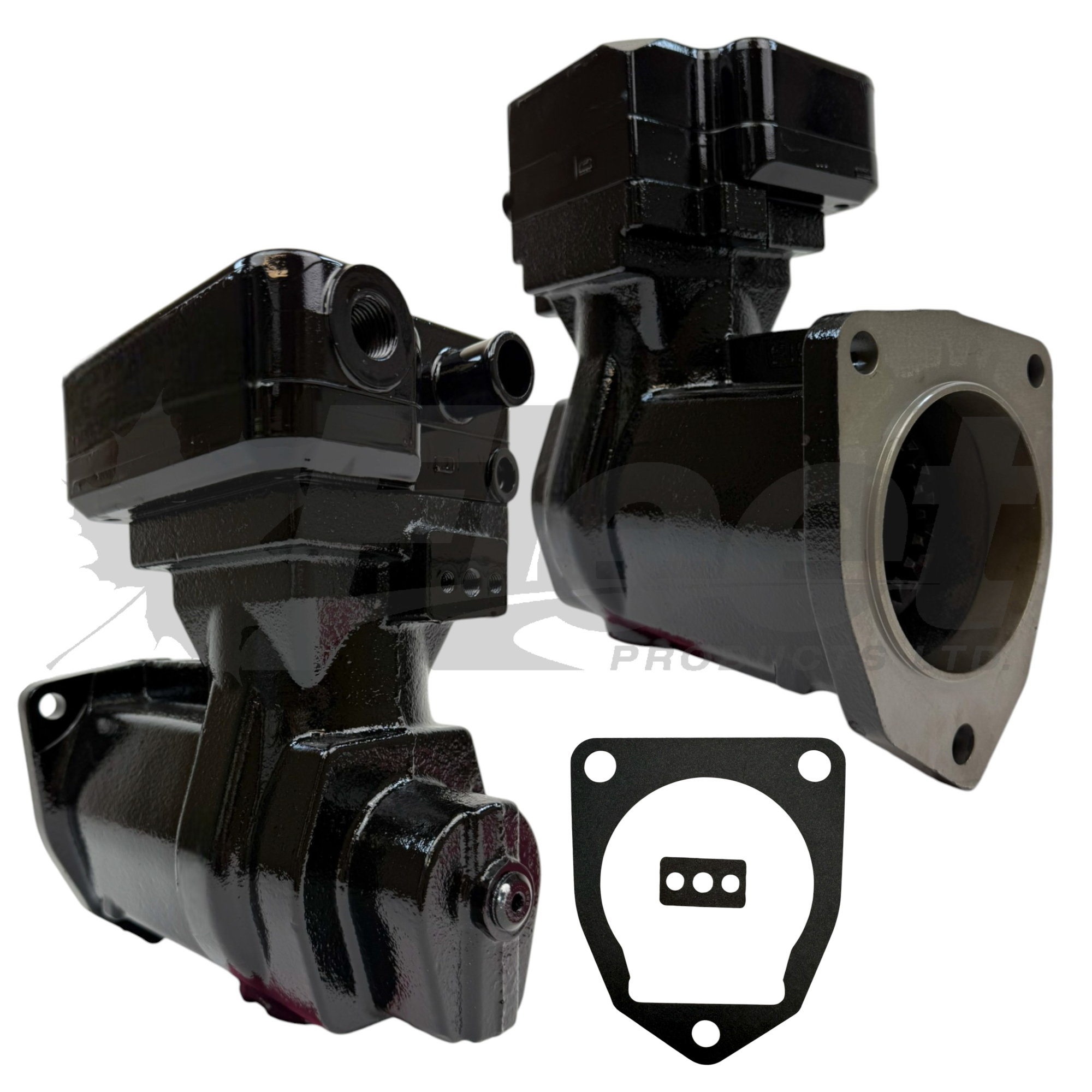

9111535410X – 85MM MACK "CERTIFIED REMANUFACTURED" AIR BRAKE COMPRESSOR | WABCO SS318 STYLE
PART NUMBER(S):
Fleet Products: 9111535410X (Remanufactured) | OE: 9111535410, 9111530560, Mack (5396-9111535410X)
DESCRIPTION:
Model: WABCO SS318
Vehicles: Mack CXN612 (2006), Mack CXN613 (2006), Mack Highway Trucks
• Bore Size: 85 mm
• Air Delivery: 18.7 CFM at 1250 RPM
• Mounting: Extended Flange
• Drive Type: Non-Thru-Drive with Cover Plate (solid rear crankcase)
• Water Port: 3/8" NPT
• Discharge Port: 1/2"-27 NPT
• Governor Port: 1/8"-27 NPT
• Head Assembly: 9111539312AH
Applications:
Built for Mack commercial highway trucks and fleet vehicles using the WABCO SS318 platform. The 9111535410X delivers consistent compressed air for braking performance in long-haul, vocational, and Class 8 truck applications.
CROSS-REFERENCE(S):
170.AC535410, 170AC535410, 5396-9111535410X, 53969111535410X, 767653321813, 9111530560, 9111535410, 9111535410X, 9111539312X, MID9111535410X, ZZ9111535410X
EXCHANGE #
9111535410X
9111535417X
9111530560X
9111530567X
9111530550X
9111530557X
Can be Replaced by the
9111535400X Thru-Drive
A cross-reference listing means this part is a suitable replacement for the part numbers listed. Confirm all specs before ordering.
IMPORTANT INSTALLATION NOTES:
✔ Confirm fitment for Mack engines with SS318 configuration
✔ Mount using extended flange bolt pattern
✔ Drive type is non-thru with rear cover – verify engine compatibility
✔ Governor and discharge port threads must match existing system
✔ Flush water and air lines prior to install
✔ Use new gaskets included with the unit
SOLD AS REMANUFACTURED – CORE RETURN REQUIRED
Built to OEM standards — thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
