Product Description
HORTON S ADVANTAGE FAN CLUTCH – REMAN
PART NUMBER(S):
79A0007 (Reman), 99A0007 (New OEM)
DESCRIPTION:
Model: Horton S Series Fan Clutch
Engines: Caterpillar 3406
Vehicles: FOR CATERPILLAR 3406 – KENWORTH, PETERBILT, VOLVO, WESTERN STAR
• Clutch Style: Slip Type, Air Engaged

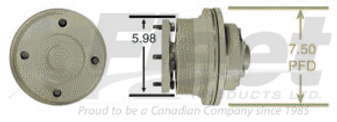

• Friction Plate Diameter: 7.50″ (190.5 mm)
• Fan Pilot Diameter: 2.00″ (50.8 mm)
• Belt Groove Configuration: 4V
• Back Pulley Diameter: 7.50″ (190.5 mm)
• Bolt Circle Diameter: 3.50″ (88.9 mm)
S Adv. Repair Kits:
- Minor Seal Repair Kit: 294205
- Major Repair Kit: 294314
- Super Repair Kit: 294307
Applications: Designed for HEAVY DUTY diesel engine cooling systems, the Horton S Series fan clutch enhances thermal management, improving fuel efficiency and reducing engine wear. Remanufactured units meet or exceed OEM specifications, ensuring reliability and performance.
SOLD AS REMANUFACTURED – CORE RETURN REQUIRED
Built to OEM standards — thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
CROSS-REFERENCE(S):
Confirm whether your system uses a single-speed or two-speed fan clutch.
3912-99A0007, 3912-99A0007-2, 79A0007, 79A0007-2, 79A0007RMAN, 98A0007, 98A0007-2, 99A0007, 99A0007-2, ABP N20 14256, ABP N20 24256, ABP N20 99007, ABP N20 990072, FLT14256, FLT24256, FLT99007, FLT990072, HOR 79A0007, HOR 79A0007-2, HOR 99A0007, HOR 99A0007-2, HOR79A0007, HOR79A0007-2, HOR99A0007, HOR99A0007-2, ZBH99A0007, ZBH99A0007-2
A cross-reference listing means this compressor should be a suitable replacement for the part numbers listed. Please confirm all dimensions match your application before installing.
INSTALLATION NOTES:
Always inspect pulley, bracket, and fan blades for wear or damage before installing the replacement clutch
Confirm air system pressure is within OEM specification to ensure proper engagement
Torque all mounting hardware to Horton-recommended values
Replace worn O-rings and gaskets during installation to avoid air leaks
Ensure correct belt alignment and tension to prevent premature failure
SUPPORT & ORDERING
For technical support, installation guidance, or to confirm fitment, call 1-877-243-0442 or email sales@fleet-products.com
